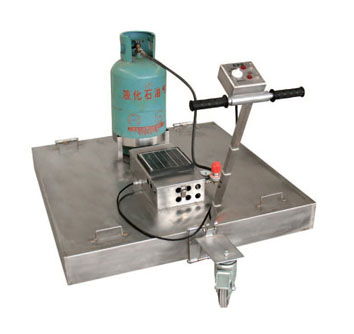

Portable Asphalt Pavement Hot Milling Board is used to heat and soften the asphalt pavement with pits, bubble, localized net-shaped cracking, alligator cracking, covering collapse grounds, heat-joint for treatment on road and some where etc.
◎Features
◆Use the “Blue flame radiation conduction technology” and have powerful radiation penetration and high efficient thermal radiation and the heating temperature up to 170 degree and heating depth 5cm within 3 to 5 minutes
◆Adopt the precise ignition control system with electronic impulse ignition, it is fast and safe
◆Use the whole set components of US (CPG) flame ionization sensor technology, The flame will be ignited automatically after eliminating by strong wind
◆With the solar battery and the smart charger and 12V battery attached
◆Gas controlled by Solenoid valve ,lower power ,and easy to control
◆Heating time and area adjustment through the timing temperature control system
Specifications
|
Type |
CGP400 |
CGP800 |
CGP1600 |
|
Weight (kg) |
25 |
50 |
80 |
|
Heating area (mm×mm) |
1260×320 |
1260×640 |
1260×1260 |
|
Heating mode |
blue flame radiation |
blue flame radiation |
blue flame radiation |
|
Ignition mode |
electronic impulse ignition |
electronic impulse ignition |
electronic impulse ignition |
|
Flameout protection |
yes |
yes |
yes |
|
Consumption of gas (kg/h) |
2 |
3 |
4 |
|
Heating depth(mm) |
50-100 |
50-100 |
50-100 |
|
Heating time(min) |
3-8 |
3-8 |
3-8 |
