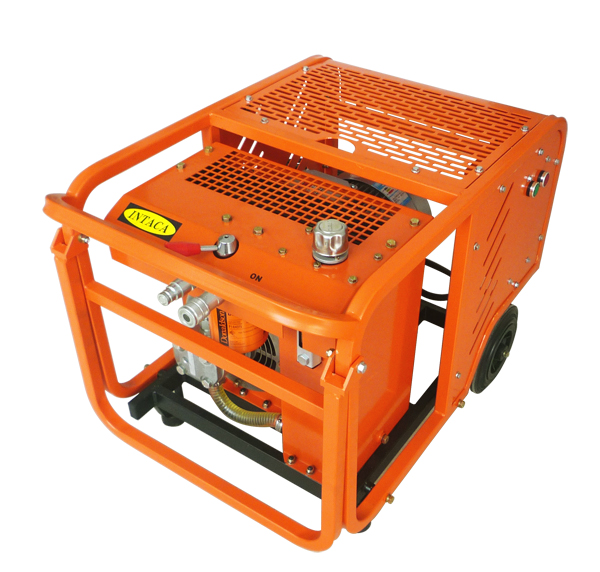

The electric hydraulic power units supply for INTACA handheld hydraulic tools. They are reliable power sources.
◎Features
◆It has the characteristics with high efficiency, lower noise, high reliability, and good economy
◆Big volume hydraulic oil tank, the large power air-cooler, which makes the cooling system more efficient so it can be worked for a longer time without overheat problem
◆With external hydraulic filter, easy to change
◆Advanced original high-pressure gear pumps imported
◆Simple to operate
Specifications
|
Type |
EP10-30 |
EP15-30 |
|
Weight(kg) |
90 |
120 |
|
Size(mm) |
800×550×530 |
900×590×600 |
|
Output flow(l/min) |
20 or 30 |
20 or 30 |
|
Output pressure(bar) |
90~155 |
90~155 |
|
Engine |
Electrical motor(7.5kw) |
Electrical motor(11kw) |
|
Volt. |
380V/50HZ |
380V/50HZ |
|
Wheel/handle |
Yes |
Yes |
|
Cooling power(hp) |
5 |
5 |
|
Capability of oil tank(L) |
12 |
12 |
|
Pollution indication |
Yes |
Yes | |
