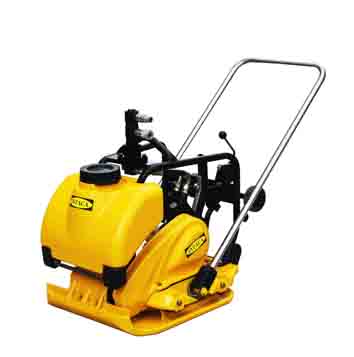

The hydraulic vibration impact plate is used to compact asphalt and mixture of viscous material in narrow place and all parts are enclosed to be fixed on the base plate. It is greatly used for compacting pavement in road, Bridge and est..
◎Features
◆Motor imported
◆Inlet-outlet hose quick connection with 360 degree rotation
◆Lower noise and smooth operating
◆Dust inhalation problem of engine solved well
|
Type |
HPV90 |
|
Weight （kg） |
90 |
|
Flow （lpm） |
26~34 |
|
Pressure（bar） |
90~140 |
|
Size（mm×mm×mm） |
850×500×915 |
|
Impacting force （KN） |
15 |
|
Impacting frequency （Hz） |
100 |
|
Rotating speed （rpm） |
3600 | |
