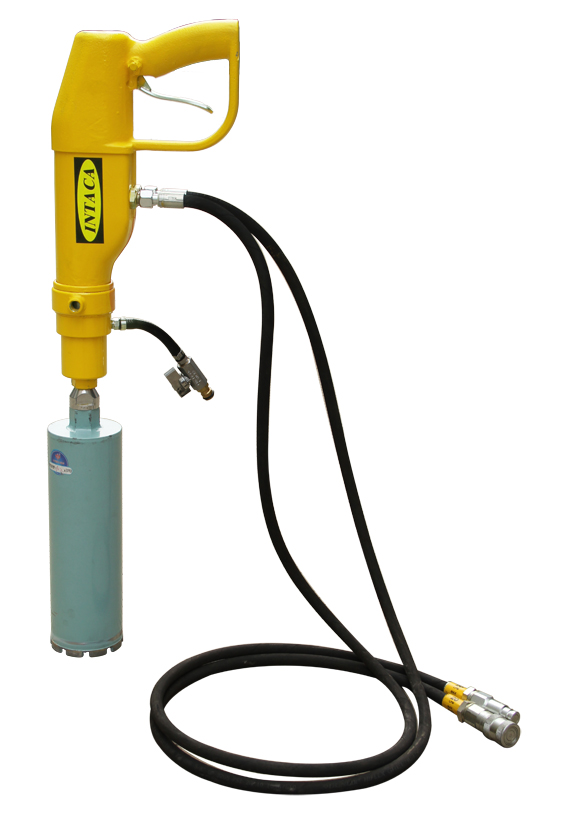

RCD10-hydraulic hand-held Core Drill, can be used in drilling or rock core sampling on cement concrete, reinforced concrete, asphalted concrete and rock. The “D” size knob can drill with horizontal direction on walls, so doubtlessly, it is a good tool in construction and decoration industry.
◎Features
◆Small, light, 8KG in all
◆Maximum drilling diameter 200 MM
◆With the function of automatic pause of drill block, it is safe.
◆All parts in hydraulic pressure oil, while life-span is long.
◆Cooling water system ensure drill’s life-span
◆Available in drilling underwater
Specifications
|
Type |
RCD10 |
|
Weight（kg） |
8 |
|
Flux Scope（lpm） |
15-24 |
|
Work Pressure（bar） |
70-140 |
|
Drill Speed（rpm） |
600 |
|
Drill Diameter（mm） |
φ50-φ200 |
|
Length（mm） |
540 |
|
Width（mm） |
78 | |
